Today's Module, 6 channel mixer

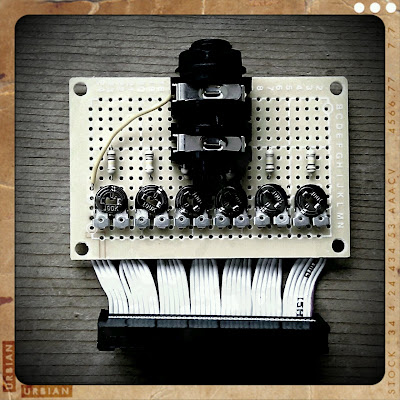

Got a bit of time this morning and managed to get one of the modules of my todo list built. It's a passive six channel mixer. I've found that with these simple synth modules I'm building at the moment it's easy to make a patch that has over a dozen audio streams....so building mixers becomes inevitable! I've started using trimpots instead of regular potentiometers as they're much cheaper and also can be mounted on the board which means modules are more compact and I don't have to worry about front panels. I haven't posted every module I've made but thought that this one was quite neatly done and I took the photo above with the excellent old camera emulator "retrocamera" available on the android market.

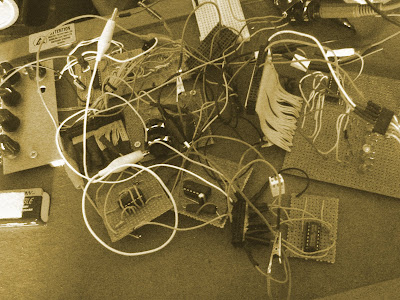

This pic is of a patch I hooked up a while back and recorded this live track from...
Creeping from the trenches by concretedog

Its a slowburner with little movement in the first 50 seconds. Lots of frequencies in this so headphones/speakers recomended.
